MWB HC-18650 & 21700 Battery-Packs are manufactured with the highest rated Lithium-Ion cells on the market today. MWB designs and build our own BMS / PCB's that prevents the pack from over-discharging and over-charging. Each pack is welded with .375 Nickel Tabs for the best overall contact between cells, and are tested for high rated charging cycles along with high ambient temperatures. Our standard connector is the 22 gauge 2-Pin JST SM Connector that can be change depending on your needs.
Click This Link
Alkaline Cells:
| Size | Dia. | Height | Capacity | Voltage | IEC |
|---|---|---|---|---|---|
| AAAA | 8.3mm | 42.5mm | 625 mah | 1.5V | LR8D425 |
| AAA | 10.5mm | 44.5mm | 1200 mah | 1.5V | LR03 |
| AA | 14.5mm | 50.5mm | 2700 mah | 1.5V | LR6 |
| C | 26.2mm | 50mm | 8,000 mah | 1.5V | LR14 |
| D | 34.2mm | 61.5mm | 12,000 mah | 1.5V | LR20 |
| F | 33mm | 91mm | 26,000 mah | 1.5V | LR25 |
| N | 12mm | 30.2mm | 800 mah | 1.5V | LR1 |
| A23 | 10.3mm | 28.5mm | 55 mah | 12V | 8LR932 |
| A27 | 8mm | 28.2mm | 22 mah | 12V | 8LR732 |
NiCd / Nimh Cells:
| Size | Dia. | Height | Capacity | Voltage | IEC |
|---|---|---|---|---|---|
| 1/2 C | 26mm | 24mm | 1.2V | ||
| 1/2 D | 33mm | 37mm | 1.2V | ||
| 1/2 SC | 23mm | 26mm | 1.2V | ||
| 1/3 AA | 14.2mm | 17.5mm | 1.2V | ||
| 1/3 AAA | 10.5mm | 16mm | 1.2V | ||
| 2/3 A | 17mm | 28.5mm | 1.2V | ||
| 2/3 AA | 14.2mm | 28.7mm | 1.2V | ||
| 2/3 AAA | 10.5mm | 30mm | 1.2V | ||
| 4/3 A | 17mm | 67mm | 1.2V | ||
| 4/3 AF | 18mm | 67mm | 1.2V | ||
| 4/5 A | 17mm | 43mm | 1.2V | ||
| 4/5 AA | 14.2mm | 43mm | 1.2V | ||
| 4/5 SC | 23mm | 34mm | 1.2V | ||
| A | 17mm | 50mm | 1.2V | ||
| AA | 14.2mm | 50mm | 1.2V | ||
| AAA | 10.5mm | 40.5mm | 1.2V | ||
| C | 26mm | 46mm | 1.2V | ||
| D | 33mm | 58mm | 1.2V | ||
| SC | 23mm | 43mm | 1.2V |
Please note that sizes may vary slightly between manufacturers.

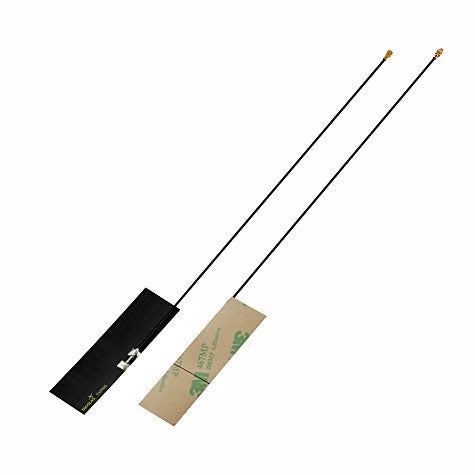

The Taoglas FXP895 is an ISM/LoRA compact flexible PCB antenna designed to fit into small devices. This antenna has been expertly designed to cover frequencies used in different regions for ISM/LoRA applications, incorporating a wideband design is rare for ISM/LoRA products and with the FXP895 frequencies from 860-928MHz can be covered so one SKU can be used for global ISM/LoRA applications.
The FXP895 has been designed to be extremely compact compared to other ISM/LoRA Flexible PCB antennas meaning it can be placed in areas where other products cannot. It can be adhered via 3M tape on to a customer’s device with care taken to ensure the antenna is placed as far away from metal components as possible.
Typical Applications Include:
– Remote Monitoring
– Mesh Networks
– Security
The FXP895’s cables and connectors are fully customizable, please contact your regional Taoglas customer support team for further information.
| Manufacturer | Taoglas |
|---|---|
| Manufacturers Part # | FXP895.07.0200C |
| Lead Time | 10 Week Lead Time |
| Industry Alias | 960-FXP895.07.0200C |
| Packaging | Bag |
| Factory Pack Quantity | 100 |
| Height | 1.6 mm |
| Length | 69.3 mm |
| Width | 20 mm |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |
| Mounting Style | Adhesive Mount |
| Termination Style | Connector |
| Power Rating | 2 W |
| Product | PCB Antennas |
| Cable Type | 1.13 mm Coax |
| Cable Length | 200 mm |
| Impedance | 50 Ohms |
| Maximum Frequency | 928 MHz |
| Minimum Frequency | 860 MHz |
| Number of Bands | 1 Band |
| Antenna Connector Type | U.FL |
| Gain | 2.83 dBi |
| Electrical Type | Patch |
| Polarization | Linear |
