Availability: Low stock: 100 left
Couldn't load pickup availability
We use USPS, UPS or DHL to provide reliable, secure shipping service from our shop to your home.
We ship all US domestic orders within 5-10 business days.
Please see our Return Policy from the link at the bottom of this website.
MWB HC-18650 & 21700 Battery-Packs are manufactured with the highest rated Lithium-Ion cells on the market today. MWB designs and build our own BMS / PCB's that prevents the pack from over-discharging and over-charging. Each pack is welded with .375 Nickel Tabs for the best overall contact between cells, and are tested for high rated charging cycles along with high ambient temperatures. Our standard connector is the 22 gauge 2-Pin JST SM Connector that can be change depending on your needs.
Click This Link
Alkaline Cells:
| Size | Dia. | Height | Capacity | Voltage | IEC |
|---|---|---|---|---|---|
| AAAA | 8.3mm | 42.5mm | 625 mah | 1.5V | LR8D425 |
| AAA | 10.5mm | 44.5mm | 1200 mah | 1.5V | LR03 |
| AA | 14.5mm | 50.5mm | 2700 mah | 1.5V | LR6 |
| C | 26.2mm | 50mm | 8,000 mah | 1.5V | LR14 |
| D | 34.2mm | 61.5mm | 12,000 mah | 1.5V | LR20 |
| F | 33mm | 91mm | 26,000 mah | 1.5V | LR25 |
| N | 12mm | 30.2mm | 800 mah | 1.5V | LR1 |
| A23 | 10.3mm | 28.5mm | 55 mah | 12V | 8LR932 |
| A27 | 8mm | 28.2mm | 22 mah | 12V | 8LR732 |
NiCd / Nimh Cells:
| Size | Dia. | Height | Capacity | Voltage | IEC |
|---|---|---|---|---|---|
| 1/2 C | 26mm | 24mm | 1.2V | ||
| 1/2 D | 33mm | 37mm | 1.2V | ||
| 1/2 SC | 23mm | 26mm | 1.2V | ||
| 1/3 AA | 14.2mm | 17.5mm | 1.2V | ||
| 1/3 AAA | 10.5mm | 16mm | 1.2V | ||
| 2/3 A | 17mm | 28.5mm | 1.2V | ||
| 2/3 AA | 14.2mm | 28.7mm | 1.2V | ||
| 2/3 AAA | 10.5mm | 30mm | 1.2V | ||
| 4/3 A | 17mm | 67mm | 1.2V | ||
| 4/3 AF | 18mm | 67mm | 1.2V | ||
| 4/5 A | 17mm | 43mm | 1.2V | ||
| 4/5 AA | 14.2mm | 43mm | 1.2V | ||
| 4/5 SC | 23mm | 34mm | 1.2V | ||
| A | 17mm | 50mm | 1.2V | ||
| AA | 14.2mm | 50mm | 1.2V | ||
| AAA | 10.5mm | 40.5mm | 1.2V | ||
| C | 26mm | 46mm | 1.2V | ||
| D | 33mm | 58mm | 1.2V | ||
| SC | 23mm | 43mm | 1.2V |
Please note that sizes may vary slightly between manufacturers.

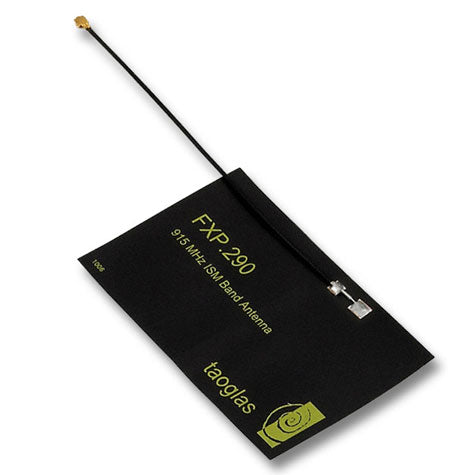

Antennas FXP290 915MHz 1.5dBi Flex PCB Antenna, 100mm 1.13, I-PEX MHFIU.FL.
The Taoglas FXP290 915 MHz ISM Antenna covers from 902-928 MHz used in the 915 MHz ISM (Industrial Scientific Medical) Band. The antenna has been designed in a flexible material with a square form-factor and cable connection for an easy installation. The antenna works on different plastic materials and thicknesses. We have selected a piece of ABS with 2 mm of thickness as a baseline for testing..
| Manufacturer | Taoglas |
|---|---|
| Manufacturers Part # | FXP290.07.0100A |
| Lead Time | 10 Week Lead Time |
| Industry Alias | 960-FXP290070100A |
| Sub-Category | Antennas |
| Packaging | Bag |
| Factory Pack Quantity | 100 |
| Height | 0.1 mm |
| Length | 75 mm |
| Width | 45 mm |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |
| Type | Passive Antenna |
| Mounting Style | Adhesive Mount |
| Termination Style | Connector |
| Power Rating | 5 W |
| Product | PCB Antennas |
| Cable Type | 100 mm RF1.13 |
| Mechanical Style | PCB Trace |
| Application | ISM Application |
| Cable Length | 100 mm |
| Technology | ISM |
| Impedance | 50 Ohms |
| Style | I-Bar Flex |
| Maximum Frequency | 928 MHz |
| Minimum Frequency | 902 MHz |
| Number of Bands | 1 Band |
| Protocol - Sub GHz | ISM |
| Antenna Connector Type | IPEX MHF2 |
| Gain | 1.5 dBi |
| VSWR | 2:1 |
| Protocol - ANT Thread Zigbee - 802.15.4 | 802.15.4 (ANT, Thread, Zigbee) |
| Polarization | Linear |
| Center Frequency | 915 MHz |
