MWB HC-18650 & 21700 Battery-Packs are manufactured with the highest rated Lithium-Ion cells on the market today. MWB designs and build our own BMS / PCB's that prevents the pack from over-discharging and over-charging. Each pack is welded with .375 Nickel Tabs for the best overall contact between cells, and are tested for high rated charging cycles along with high ambient temperatures. Our standard connector is the 22 gauge 2-Pin JST SM Connector that can be change depending on your needs.
Click This Link

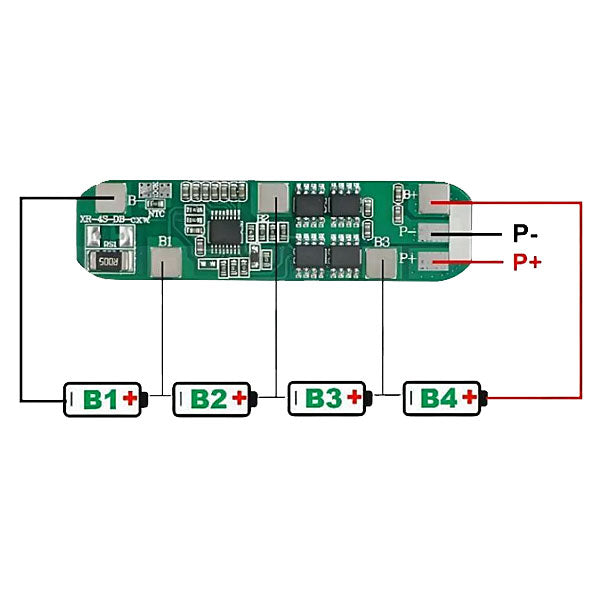

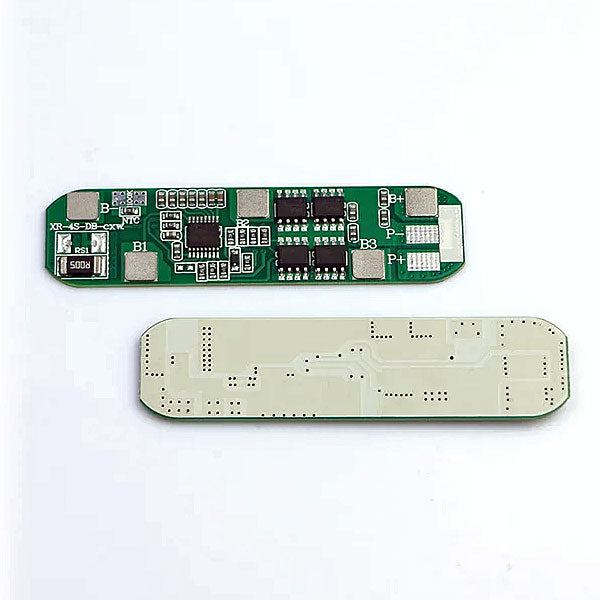

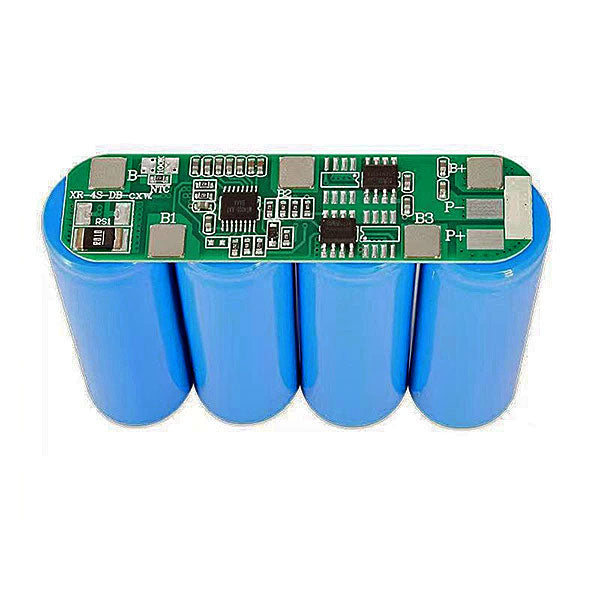

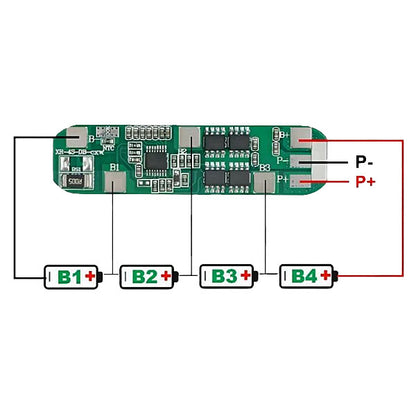

Protection Circuit Module (PCB) for 14.8V (4S) Lithium Battery Pack
2. PCM applies for 4 cells Lithium battery pack.
3. To prevent the battery packs from overcharge, over discharge, over current, over temperature, short circuit.
4. With cell balance/equilibrium function.
5. Compatible with Lithium cells.
6. How balancing function works? After battery pack is fully charged. PCM will detect each cell’s voltage and trim higher voltage down.
| Manufacturer |
Midwest Battery, LLC |
|---|---|
| MFPN |
6921101XR4SDBCXW |
| Continuous Working Current |
5 amps |
| Maximum Charging Current |
3 amps |
| Dimensions |
L 71mm / W 17mm / H 2.5mm |
| Charging Protection |
Yes |
| Discharging Protection |
Yes |
| Short Circuit Protection |
Yes |
| Wire Break Protection |
Yes |
