PCM/PCB 6S/12A FOR 22.2V LI-ION/LITHIUM/LI-POLYMER BATTERY-PACK

PCM/PCB 6S/12A FOR 22.2V LI-ION/LITHIUM/LI-POLYMER BATTERY-PACK

$12.50
$12.50
Sold out
Shipping calculated at checkout.
Features and Benefits 1.Protection Circuit Board for 22.2V 6S Li-ion/Li-Polymer battery pack. 2.PCB applies for 6 cells Li-ion/Li-Polymer battery pack. 3.To prevent the battery packs from over-charge, over-discharge, over current,...
29 people are viewing this right now

Availability: Low stock: 10 left
SKU: 6921105HX6S12A
Vendor: Midwest Battery, LLC
Category: PCB/BMS
Tags:

Shipping & Returns

We use USPS, UPS or DHL to provide reliable, secure shipping service from our shop to your home.

We ship all US domestic orders within 5-10 business days.

Please see our Return Policy from the link at the bottom of this website.

Material In Use

MWB HC-18650 & 21700 Battery-Packs are manufactured with the highest rated Lithium-Ion cells on the market today. MWB designs and build our own BMS / PCB's that prevents the pack from over-discharging and over-charging. Each pack is welded with .375 Nickel Tabs for the best overall contact between cells, and are tested for high rated charging cycles along with high ambient temperatures. Our standard connector is the 22 gauge 2-Pin JST SM Connector that can be change depending on your needs.

Size Chart

Click This Link

Care Instructions

Battery Safety Information

View full product details

Features and Benefits

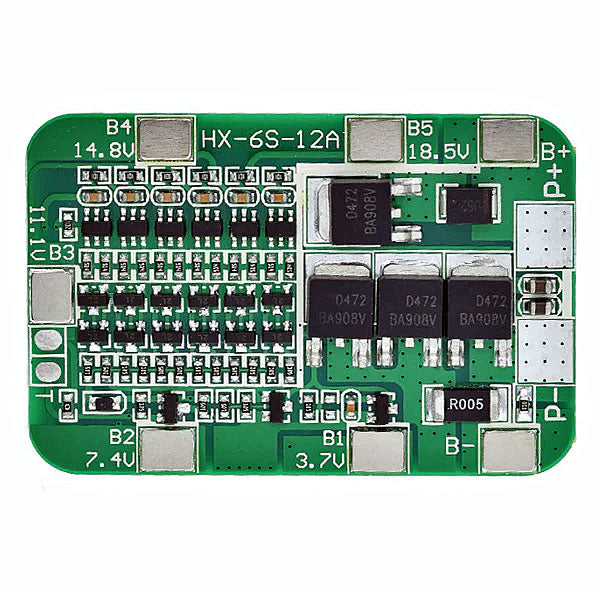

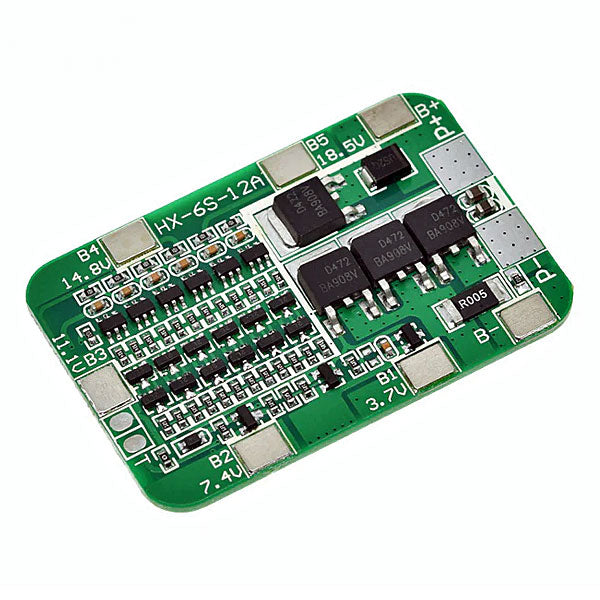

1.Protection Circuit Board for 22.2V 6S Li-ion/Li-Polymer battery pack.

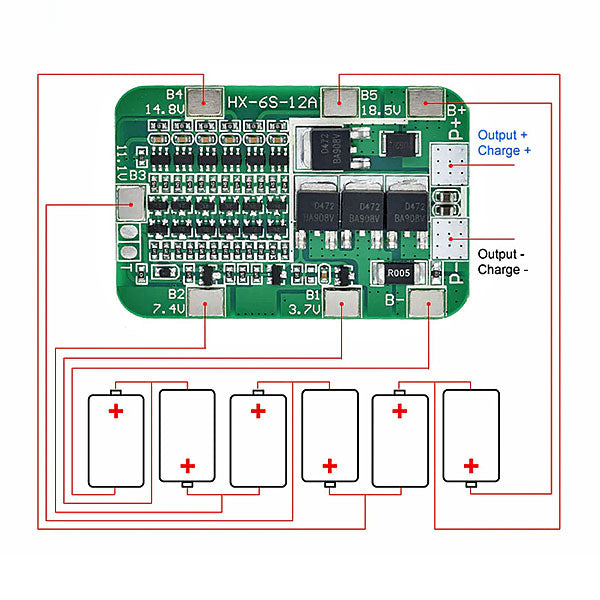

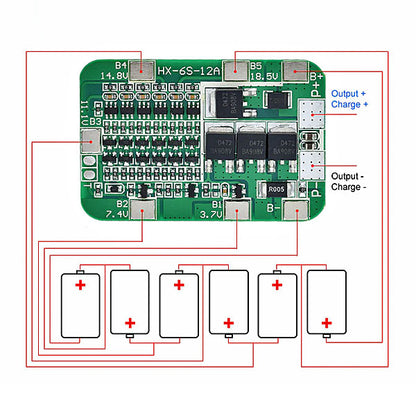

2.PCB applies for 6 cells Li-ion/Li-Polymer battery pack.

3.To prevent the battery packs from over-charge, over-discharge, over current, over temperature, short circuit.

4.Maximal working current 12A.

5.Compatible with Li-ion/Li-Polymer cells.

Specifications:

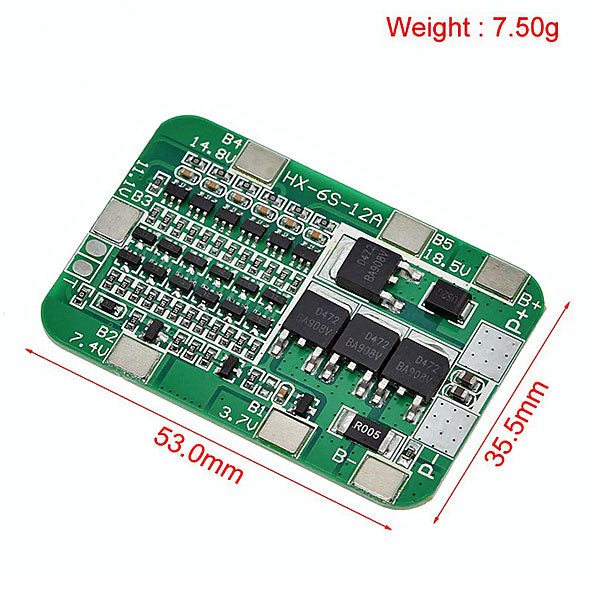

Size: approx.50*30*2mm
Lamp shift maximum discharge current: 12A
Instantaneous discharge current: 25A
Charging voltage: 25.5V
Charging current: 15A (MAX)
Overcharge detection voltage: 4.28 ± 0.05V
Overcharge protection delay: 0.1S
Overcharge release voltage: 4.08 ± 0.05V
Over discharge detection voltage: 2.55 ± 0.08V
Overdischarge detection delay: 0.1S
The overdischarge release voltage: 2.9 ± 0.1V
Overcurrent detection voltage: 150mV
Overcurrent detection delay: 9MS
Overcurrent protection current: 30 ± 3A
Overcurrent protection release condition: Disconnect the load
Short circuit detection delay: 250uS
Short circuit protection Release condition: disconnect negative open
Main circuit conduction resistance: ≤20mΩ
Working current: ≤30uA
Sleep current (battery over discharge) ≤10uA
Temperature range: -30 / + 80 ℃
