PCM/PCB 5S/15A FOR 18.5V LI-ION/LITHIUM/LI-POLYMER BATTERY-PACK

PCM/PCB 5S/15A FOR 18.5V LI-ION/LITHIUM/LI-POLYMER BATTERY-PACK

$12.75
$12.75
Sold out
Shipping calculated at checkout.
Features and Benefits 1.Protection Circuit Board for 18.5V 5S Li-ion/Li-Polymer battery pack. 2.PCB applies for 5 cells Li-ion/Li-Polymer battery pack. 3.To prevent the battery packs from over-charge, over-discharge, over current,...
21 people are viewing this right now

Availability: Low stock: 10 left
SKU: 6921105BW60225S
Vendor: Midwest Battery, LLC
Category: PCB/BMS
Tags:

Shipping & Returns

We use USPS, UPS or DHL to provide reliable, secure shipping service from our shop to your home.

We ship all US domestic orders within 5-10 business days.

Please see our Return Policy from the link at the bottom of this website.

Material In Use

MWB HC-18650 & 21700 Battery-Packs are manufactured with the highest rated Lithium-Ion cells on the market today. MWB designs and build our own BMS / PCB's that prevents the pack from over-discharging and over-charging. Each pack is welded with .375 Nickel Tabs for the best overall contact between cells, and are tested for high rated charging cycles along with high ambient temperatures. Our standard connector is the 22 gauge 2-Pin JST SM Connector that can be change depending on your needs.

Size Chart

Click This Link

Care Instructions

Battery Safety Information

View full product details

Features and Benefits

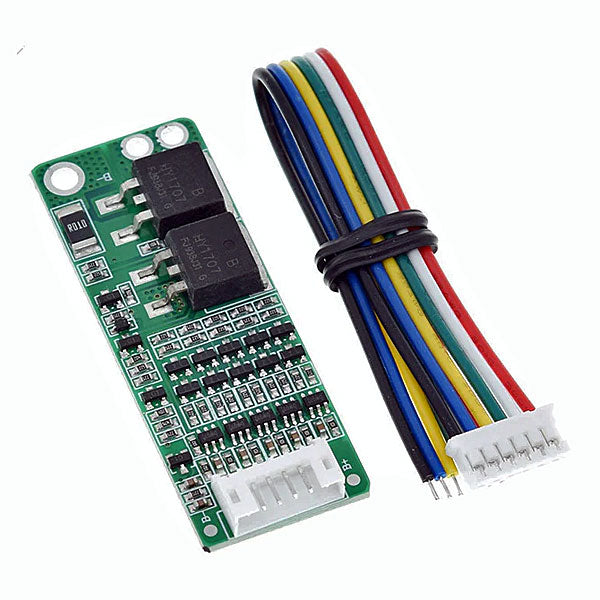

1.Protection Circuit Board for 18.5V 5S Li-ion/Li-Polymer battery pack.

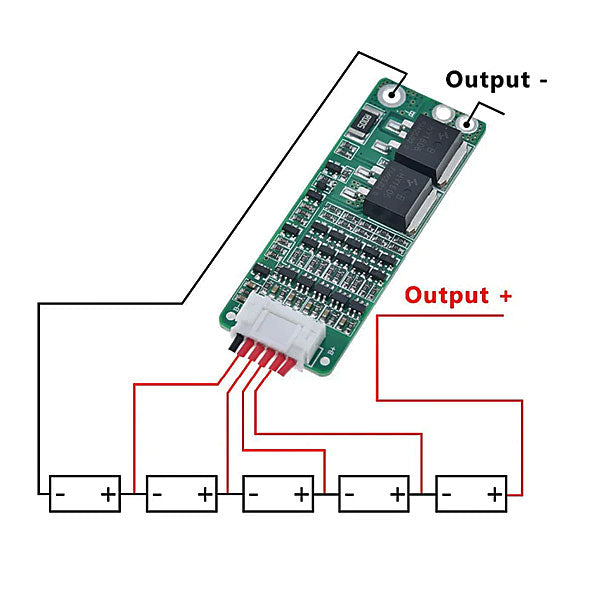

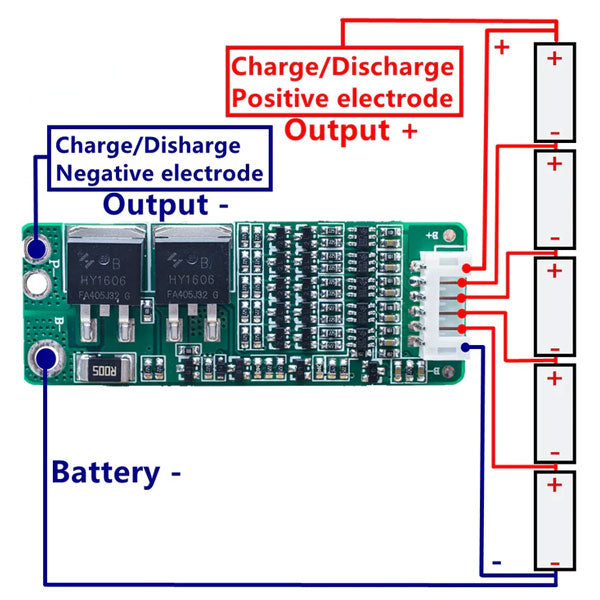

2.PCB applies for 5 cells Li-ion/Li-Polymer battery pack.

3.To prevent the battery packs from over-charge, over-discharge, over current, over temperature, short circuit.

4.Maximal working current 4A.

5.Compatible with Li-ion/Li-Polymer cells.

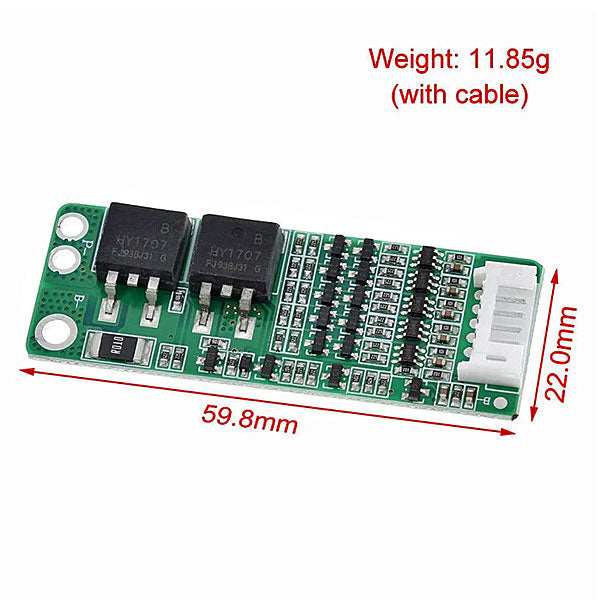

Size: approx. 60*23mm
Color: as picture shows
Charging voltage: 21 V
Charge MOS pressure value: 35 V
Discharge MOS pressure value: 35 V
Charging current: 56 A
Continuous discharge current: 15 A
Over current protection: 50/55/60 A
Over current protection delay: 20/25/30mS
Single section since the power consumption: 30uA
Single section between the power consumption: 3uA
Single section over charge detection voltage: 4.18- /4.22V
Over charge recovery voltage 4.05- 4.15 V
Over charge detection delay: 0.5/1.0/2.0S
Single section over discharge detection voltage: 2.75-2.85 V
Over discharge recovery voltage: 2.90-3.20 V
Over discharge detection delay: 0.5-2.0S
Short / over / over current protection recovery short circuit / over discharge / over current protection after removal of load auto recovery
Short circuit protection delay 200/500/600uS
The normal working state of B- to P- resistance: 5mΩ
Continuous 15A current maximum temperature rise: 25 °
Working environment (humidity) relative humidity: ≥98% (long-term stability under the humidity)
Working environment (temperature) -30 ~ 80°(in the lower temperature range of long-term stability)
