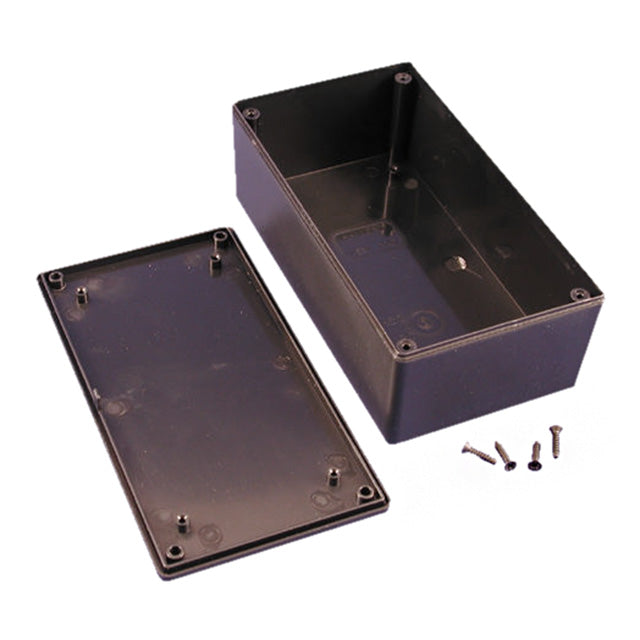

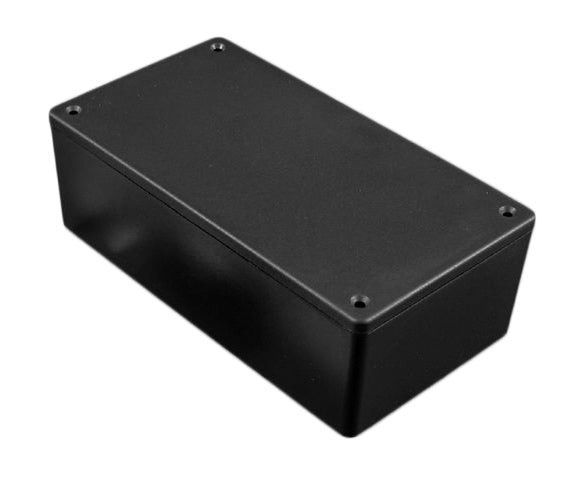

HAMMOND (1591XXDSBK) ABS PLASTIC MULTI-PURPOSE ENCLOSURES W/ PC BOARD STANDOFFS

HAMMOND (1591XXDSBK) ABS PLASTIC MULTI-PURPOSE ENCLOSURES W/ PC BOARD STANDOFFS

$10.50
$10.50
Sold out
Shipping calculated at checkout.
Description: Ideally suited for mounting printed circuit boards horizontally. Internal sides of enclosure are smooth for easy connector installation except for the largest enclosure. 1591XXF. 1591XXF size is a universal type...
23 people are viewing this right now

Availability: Low stock: 10 left
SKU: MWB1591XXDSBK
Vendor: Midwest Battery, LLC
Category: Hardware
Tags:

Shipping & Returns

We use USPS, UPS or DHL to provide reliable, secure shipping service from our shop to your home.

We ship all US domestic orders within 5-10 business days.

Please see our Return Policy from the link at the bottom of this website.

Material In Use

MWB HC-18650 & 21700 Battery-Packs are manufactured with the highest rated Lithium-Ion cells on the market today. MWB designs and build our own BMS / PCB's that prevents the pack from over-discharging and over-charging. Each pack is welded with .375 Nickel Tabs for the best overall contact between cells, and are tested for high rated charging cycles along with high ambient temperatures. Our standard connector is the 22 gauge 2-Pin JST SM Connector that can be change depending on your needs.

Size Chart

Click This Link

Care Instructions

Battery Safety Information

Alkaline Cells:

Size  Dia.  Height  Capacity  Voltage IEC
AAAA 8.3mm 42.5mm 625 mah 1.5V LR8D425
AAA 10.5mm 44.5mm 1200 mah 1.5V LR03
AA 14.5mm 50.5mm 2700 mah 1.5V LR6
C 26.2mm 50mm 8,000 mah 1.5V LR14
D 34.2mm 61.5mm 12,000 mah 1.5V LR20
F 33mm 91mm 26,000 mah 1.5V LR25
N 12mm 30.2mm 800 mah 1.5V LR1
A23 10.3mm 28.5mm 55 mah 12V 8LR932
A27 8mm 28.2mm 22 mah 12V 8LR732



NiCd / Nimh Cells:

Size  Dia.  Height  Capacity  Voltage IEC
1/2 C 26mm 24mm
1.2V
1/2 D 33mm 37mm
1.2V
1/2 SC 23mm 26mm
1.2V
1/3 AA 14.2mm 17.5mm
1.2V
1/3 AAA 10.5mm 16mm
1.2V
2/3 A 17mm 28.5mm
1.2V
2/3 AA 14.2mm 28.7mm
1.2V
2/3 AAA 10.5mm 30mm
1.2V
4/3 A 17mm 67mm
1.2V
4/3 AF 18mm 67mm
1.2V
4/5 A 17mm 43mm
1.2V
4/5 AA 14.2mm 43mm
1.2V
4/5 SC 23mm 34mm
1.2V
A 17mm 50mm
1.2V
AA 14.2mm 50mm
1.2V
AAA 10.5mm 40.5mm
1.2V
C 26mm 46mm
1.2V
D 33mm 58mm
1.2V
SC 23mm 43mm
1.2V



Please note that sizes may vary slightly between manufacturers.

View full product details

Description:

  • Ideally suited for mounting printed circuit boards horizontally.
  • Internal sides of enclosure are smooth for easy connector installation except for the largest enclosure. 1591XXF. 1591XXF size is a universal type which includes P.C.board standoffs in the lid and enclosure PLUS includes card guides.
  • Strong tongue and groove lid to box construction provides protection against access of dust and splashing water.
  • Designed to meet IP54.
  • Lid and box both contain – molded in PC board standoffs.
  • Standard black and gray versions molded from easy to machine, flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
  • Transparent blue and all economy versions are molded from general purpose (not flame-retardant) plastic.
  • Stocked in satin texture black and grey.
  • On standard versions, the lid is secured with M3 x 10 mm Phillips machine screws threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
  • Economy versions are assembled with self tapping screws into fully plastic posts.
  • Black and transparent blue enclosures include black screws, gray enclosures include nickel plated screws.

Specifications:  Link
