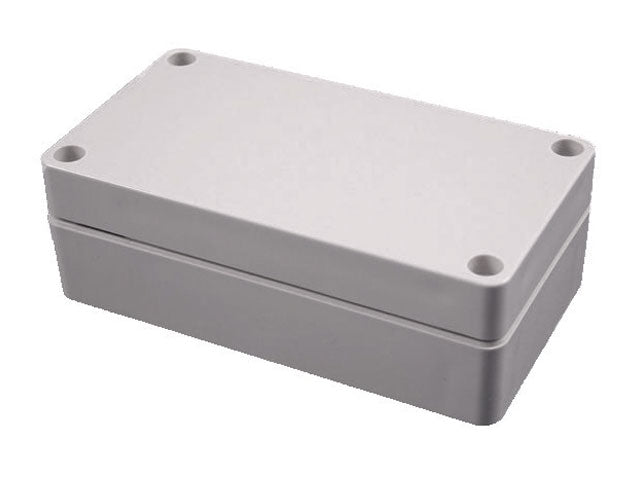

HAMMOND (1554CGY) WATER TIGHT POLYCARBONATE & GENERAL PURPOSE ABS ENCLOSURE

HAMMOND (1554CGY) WATER TIGHT POLYCARBONATE & GENERAL PURPOSE ABS ENCLOSURE

$21.00
$21.00
Sold out
Shipping calculated at checkout.
Features: Ideally suited for mounting printed circuit boards or DIN rail mounted components (see photo features below for details). ABS Versions are molded from general purpose material which carries a...
18 people are viewing this right now

Availability: Low stock: 20 left
SKU: MWB1554CGY
Vendor: Midwest Battery, LLC
Category: Hardware
Tags:

Shipping & Returns

We use USPS, UPS or DHL to provide reliable, secure shipping service from our shop to your home.

We ship all US domestic orders within 5-10 business days.

Please see our Return Policy from the link at the bottom of this website.

Material In Use

MWB HC-18650 & 21700 Battery-Packs are manufactured with the highest rated Lithium-Ion cells on the market today. MWB designs and build our own BMS / PCB's that prevents the pack from over-discharging and over-charging. Each pack is welded with .375 Nickel Tabs for the best overall contact between cells, and are tested for high rated charging cycles along with high ambient temperatures. Our standard connector is the 22 gauge 2-Pin JST SM Connector that can be change depending on your needs.

Size Chart

Click This Link

Care Instructions

Battery Safety Information

Alkaline Cells:

Size  Dia.  Height  Capacity  Voltage IEC
AAAA 8.3mm 42.5mm 625 mah 1.5V LR8D425
AAA 10.5mm 44.5mm 1200 mah 1.5V LR03
AA 14.5mm 50.5mm 2700 mah 1.5V LR6
C 26.2mm 50mm 8,000 mah 1.5V LR14
D 34.2mm 61.5mm 12,000 mah 1.5V LR20
F 33mm 91mm 26,000 mah 1.5V LR25
N 12mm 30.2mm 800 mah 1.5V LR1
A23 10.3mm 28.5mm 55 mah 12V 8LR932
A27 8mm 28.2mm 22 mah 12V 8LR732



NiCd / Nimh Cells:

Size  Dia.  Height  Capacity  Voltage IEC
1/2 C 26mm 24mm
1.2V
1/2 D 33mm 37mm
1.2V
1/2 SC 23mm 26mm
1.2V
1/3 AA 14.2mm 17.5mm
1.2V
1/3 AAA 10.5mm 16mm
1.2V
2/3 A 17mm 28.5mm
1.2V
2/3 AA 14.2mm 28.7mm
1.2V
2/3 AAA 10.5mm 30mm
1.2V
4/3 A 17mm 67mm
1.2V
4/3 AF 18mm 67mm
1.2V
4/5 A 17mm 43mm
1.2V
4/5 AA 14.2mm 43mm
1.2V
4/5 SC 23mm 34mm
1.2V
A 17mm 50mm
1.2V
AA 14.2mm 50mm
1.2V
AAA 10.5mm 40.5mm
1.2V
C 26mm 46mm
1.2V
D 33mm 58mm
1.2V
SC 23mm 43mm
1.2V



Please note that sizes may vary slightly between manufacturers.

View full product details

Features:

  • Ideally suited for mounting printed circuit boards or DIN rail mounted components (see photo features below for details).
  • ABS Versions are molded from general purpose material which carries a flammability rating of UL94-HB.  For indoor use.
  • Polycarbonate versions are UV stabilized for outdoor use.  Gray polycarb carries a UL94-5VA rating, while clear and smoked lids carry a UL94V-0 rating.
  • Polycarbonate versions are cUL and UL 508A listed (File # E65324).  ABS plastic versions are not UL listed.
  • Enclosure color is a light gray (RAL 7035).

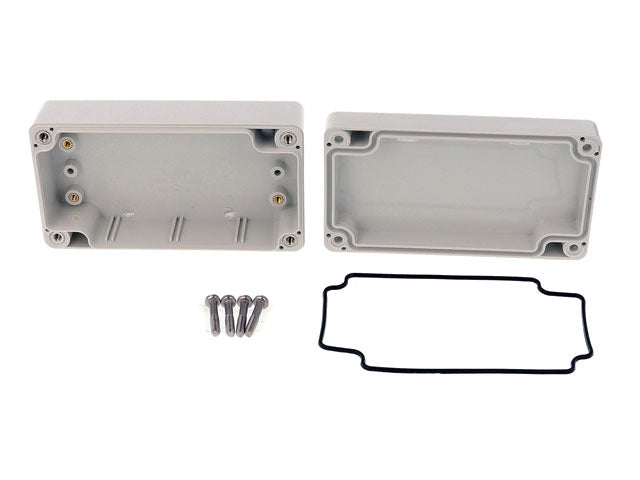

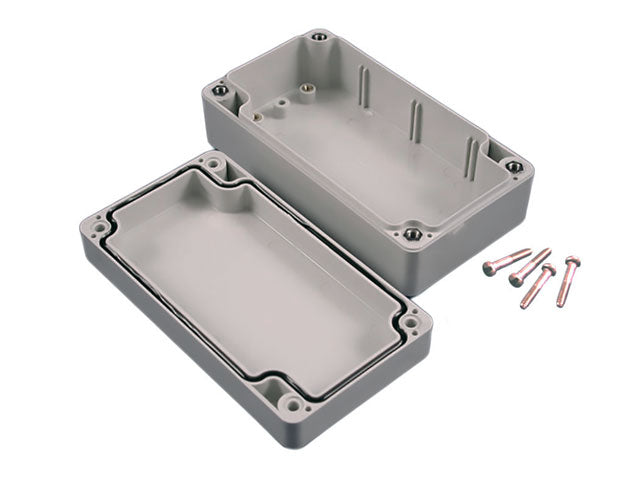

  • Gasketed lid with two piece “tongue & groove” construction provides protection against access of oil, dust and water.
  • Replaceable gasket is one piece made from high temperature, U.L. listed silicone.  Supplied loose inside the enclosure (not pre-installed).
  • Polycarb versions are designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 ratings which meet and exceed IP ratings up to and including IP68.  (Except 1554/55 V size which is 4,4X only)
  • ABS Plastic versions are designed to meet IP66.
  • Lid is secured with included M4 stainless steel machine screws which are threaded into corrosion resistant bushings for repetitive assembly & disassembly. All hardware is designed to avoid corrosion caused by harsh environments over time.
  • Lid screws are self captivating (lid holes are threaded with the first installation of lid screws).
  • Internal features are maximized for mounting options and vary with size:
    • Internal DIN rail mounting tabs molded into most models, except sizes “C” and “D”.

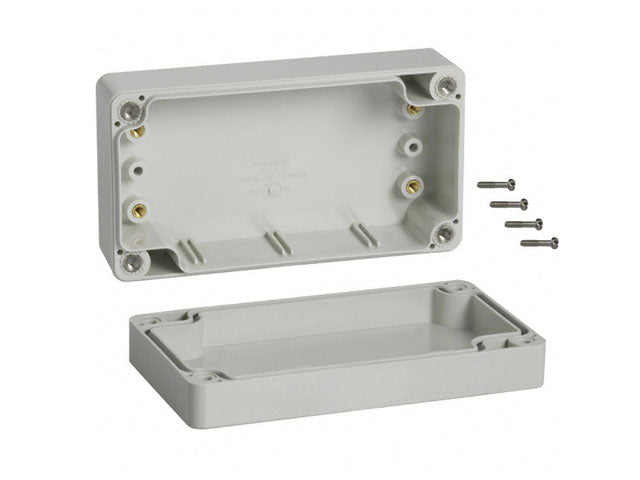

    • Threaded (M3) integral brass inserts and/or standoffs (#6 self tapping screws) for P.C. board or inner panel mounting in all but the smallest size (“B”).
    • Vertical P.C. card guides (for 1.5 mm thick P.C. boards) are molded in all but the smallest size (“B”).

Specifications:  Link
