MWB HC-18650 & 21700 Battery-Packs are manufactured with the highest rated Lithium-Ion cells on the market today. MWB designs and build our own BMS / PCB's that prevents the pack from over-discharging and over-charging. Each pack is welded with .375 Nickel Tabs for the best overall contact between cells, and are tested for high rated charging cycles along with high ambient temperatures. Our standard connector is the 22 gauge 2-Pin JST SM Connector that can be change depending on your needs.
Click This Link
Alkaline Cells:
| Size | Dia. | Height | Capacity | Voltage | IEC |
|---|---|---|---|---|---|
| AAAA | 8.3mm | 42.5mm | 625 mah | 1.5V | LR8D425 |
| AAA | 10.5mm | 44.5mm | 1200 mah | 1.5V | LR03 |
| AA | 14.5mm | 50.5mm | 2700 mah | 1.5V | LR6 |
| C | 26.2mm | 50mm | 8,000 mah | 1.5V | LR14 |
| D | 34.2mm | 61.5mm | 12,000 mah | 1.5V | LR20 |
| F | 33mm | 91mm | 26,000 mah | 1.5V | LR25 |
| N | 12mm | 30.2mm | 800 mah | 1.5V | LR1 |
| A23 | 10.3mm | 28.5mm | 55 mah | 12V | 8LR932 |
| A27 | 8mm | 28.2mm | 22 mah | 12V | 8LR732 |
NiCd / Nimh Cells:
| Size | Dia. | Height | Capacity | Voltage | IEC |
|---|---|---|---|---|---|
| 1/2 C | 26mm | 24mm | 1.2V | ||
| 1/2 D | 33mm | 37mm | 1.2V | ||
| 1/2 SC | 23mm | 26mm | 1.2V | ||
| 1/3 AA | 14.2mm | 17.5mm | 1.2V | ||
| 1/3 AAA | 10.5mm | 16mm | 1.2V | ||
| 2/3 A | 17mm | 28.5mm | 1.2V | ||
| 2/3 AA | 14.2mm | 28.7mm | 1.2V | ||
| 2/3 AAA | 10.5mm | 30mm | 1.2V | ||
| 4/3 A | 17mm | 67mm | 1.2V | ||
| 4/3 AF | 18mm | 67mm | 1.2V | ||
| 4/5 A | 17mm | 43mm | 1.2V | ||
| 4/5 AA | 14.2mm | 43mm | 1.2V | ||
| 4/5 SC | 23mm | 34mm | 1.2V | ||
| A | 17mm | 50mm | 1.2V | ||
| AA | 14.2mm | 50mm | 1.2V | ||
| AAA | 10.5mm | 40.5mm | 1.2V | ||
| C | 26mm | 46mm | 1.2V | ||
| D | 33mm | 58mm | 1.2V | ||
| SC | 23mm | 43mm | 1.2V |
Please note that sizes may vary slightly between manufacturers.

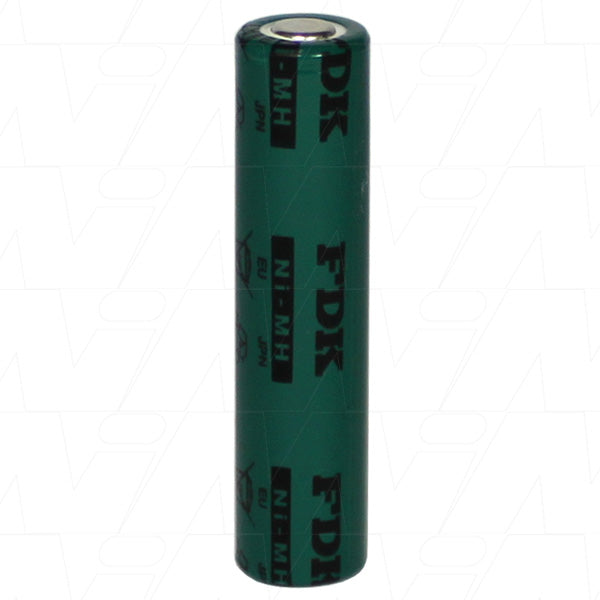

The FDK HR/AAAU was designed specifically for welding cordless drill battery-packs. Lifetime: More than 600 charge / discharge cycles. Low internal resistance allowing a strong discharge regime. Sealed, leak-proof battery. Ability to support deep discharge. Wide range of operating temperatures and withstands adverse humidity conditions. Long storage life without no memory effect or performance. Heavy-duty metal casing. High reliability due to high quality standards.
Standard Density: FDK HR/AAAU Flat Top Nimh batteries can allow for an extended run time in various applications.
Applications: manufacturing of custom welded battery-packs for cordless drill power tools.
Specificity: Accelerated charge.
Size: HR/AAAU
Capacity: 730mah
Dimensions: 10.5mm / 44.5mm
| Manufacturer |
FDK |
|---|---|
| Model |
FDK-HRAAAU730-1B |
| Battery Size |
HRAAAU |
| Nominal Voltage |
1.2V |
| Max. Continuous Discharge | |
| Nominal Capacity | |
| Capacity | |
| Chemistry |
NiMh |
| Dimensions |
D 10.5mm x H 44.5mm |
| Weight |
43oz. |
| Jacket |
Heat Shrink |
| Certificates |
CE/RoHS/MSDS |
| Rechargeable |
Yes |
| Shelf-Life |
10 Years |
