MWB HC-18650 & 21700 Battery-Packs are manufactured with the highest rated Lithium-Ion cells on the market today. MWB designs and build our own BMS / PCB's that prevents the pack from over-discharging and over-charging. Each pack is welded with .375 Nickel Tabs for the best overall contact between cells, and are tested for high rated charging cycles along with high ambient temperatures. Our standard connector is the 22 gauge 2-Pin JST SM Connector that can be change depending on your needs.
Click This Link
Alkaline Cells:
| Size | Dia. | Height | Capacity | Voltage | IEC |
|---|---|---|---|---|---|
| AAAA | 8.3mm | 42.5mm | 625 mah | 1.5V | LR8D425 |
| AAA | 10.5mm | 44.5mm | 1200 mah | 1.5V | LR03 |
| AA | 14.5mm | 50.5mm | 2700 mah | 1.5V | LR6 |
| C | 26.2mm | 50mm | 8,000 mah | 1.5V | LR14 |
| D | 34.2mm | 61.5mm | 12,000 mah | 1.5V | LR20 |
| F | 33mm | 91mm | 26,000 mah | 1.5V | LR25 |
| N | 12mm | 30.2mm | 800 mah | 1.5V | LR1 |
| A23 | 10.3mm | 28.5mm | 55 mah | 12V | 8LR932 |
| A27 | 8mm | 28.2mm | 22 mah | 12V | 8LR732 |
NiCd / Nimh Cells:
| Size | Dia. | Height | Capacity | Voltage | IEC |
|---|---|---|---|---|---|
| 1/2 C | 26mm | 24mm | 1.2V | ||
| 1/2 D | 33mm | 37mm | 1.2V | ||
| 1/2 SC | 23mm | 26mm | 1.2V | ||
| 1/3 AA | 14.2mm | 17.5mm | 1.2V | ||
| 1/3 AAA | 10.5mm | 16mm | 1.2V | ||
| 2/3 A | 17mm | 28.5mm | 1.2V | ||
| 2/3 AA | 14.2mm | 28.7mm | 1.2V | ||
| 2/3 AAA | 10.5mm | 30mm | 1.2V | ||
| 4/3 A | 17mm | 67mm | 1.2V | ||
| 4/3 AF | 18mm | 67mm | 1.2V | ||
| 4/5 A | 17mm | 43mm | 1.2V | ||
| 4/5 AA | 14.2mm | 43mm | 1.2V | ||
| 4/5 SC | 23mm | 34mm | 1.2V | ||
| A | 17mm | 50mm | 1.2V | ||
| AA | 14.2mm | 50mm | 1.2V | ||
| AAA | 10.5mm | 40.5mm | 1.2V | ||
| C | 26mm | 46mm | 1.2V | ||
| D | 33mm | 58mm | 1.2V | ||
| SC | 23mm | 43mm | 1.2V |
Please note that sizes may vary slightly between manufacturers.
Please Note:
MWB DeWalt Battery-Pack Inserts are made to order. Please call to order: 319-360-5000
Once we receive your order it takes 5-7 days for manufacturing and testing prior to shipping.

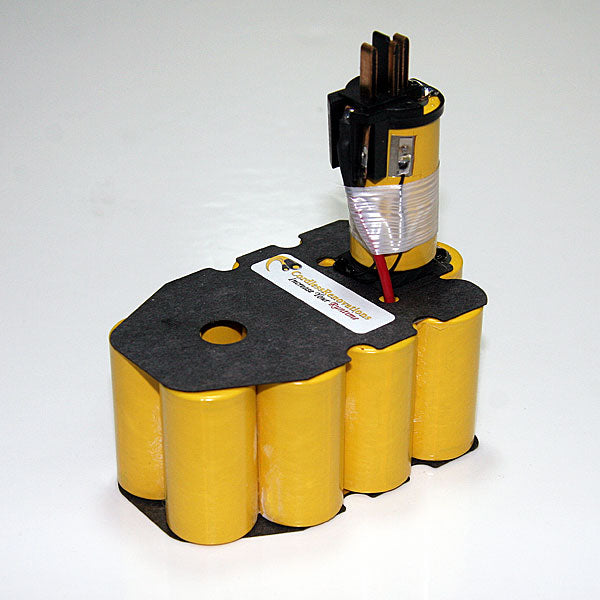

Our Inserts will only work with DeWalt cases that can be opened by screws. Inserts will only work with DeWalt cases that can be opened by screws. This battery-pack is manufactured by Midwest Battery, LLC and are used to insert into a existing DeWalt DC9091XRP battery cases.
Description: Midwest Battery DeWalt battery-packs inserts are manufactured with high rate discharge, heavy-duty, long-lasting NiCd cells that will meet or exceed the manufacturer’s OEM specifications. Designed for repetitive charging, our inserts have no memory effect and come with a 1 year warranty. Easy to install, our inserts are designed to bring your old or outdated battery back to life.

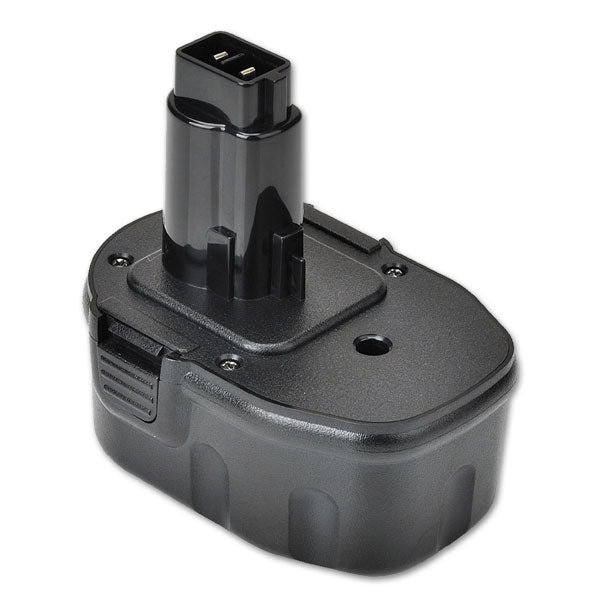

Fits Into: DC9091XRP case shown below
Battery Life: 500 Cycles
Chemistry: NiCd
Capacity: 2500mah
Warranty: 1 Year
Please Note: Inserts will only work with DeWalt cases that can be opened by screws.
| Manufacturer |
Midwest Battery, LLC |
|---|---|
| Model |
DC9091XRP |
| Chemistry |
NiCD |
| Nominal Voltage |
14.4V |
| Nominal Capacity |
2500mah |
| Charging Voltage |
15.3V |
| Standard Charging Current |
1 amp |
| Max. Continuous Discharge |
2.5 amps |
| Rechargeable |
Yes |
| Design |
Full Sub C 14.4V DeWalt Insert |
| Weight |
2 lbs. |
| Certificates |
CE/RoHS/MSDS |
| Shelf-Life |
3 Years |
