MWB HC-18650 & 21700 Battery-Packs are manufactured with the highest rated Lithium-Ion cells on the market today. MWB designs and build our own BMS / PCB's that prevents the pack from over-discharging and over-charging. Each pack is welded with .375 Nickel Tabs for the best overall contact between cells, and are tested for high rated charging cycles along with high ambient temperatures. Our standard connector is the 22 gauge 2-Pin JST SM Connector that can be change depending on your needs.
Click This Link
Alkaline Cells:
| Size | Dia. | Height | Capacity | Voltage | IEC |
|---|---|---|---|---|---|
| AAAA | 8.3mm | 42.5mm | 625 mah | 1.5V | LR8D425 |
| AAA | 10.5mm | 44.5mm | 1200 mah | 1.5V | LR03 |
| AA | 14.5mm | 50.5mm | 2700 mah | 1.5V | LR6 |
| C | 26.2mm | 50mm | 8,000 mah | 1.5V | LR14 |
| D | 34.2mm | 61.5mm | 12,000 mah | 1.5V | LR20 |
| F | 33mm | 91mm | 26,000 mah | 1.5V | LR25 |
| N | 12mm | 30.2mm | 800 mah | 1.5V | LR1 |
| A23 | 10.3mm | 28.5mm | 55 mah | 12V | 8LR932 |
| A27 | 8mm | 28.2mm | 22 mah | 12V | 8LR732 |
NiCd / Nimh Cells:
| Size | Dia. | Height | Capacity | Voltage | IEC |
|---|---|---|---|---|---|
| 1/2 C | 26mm | 24mm | 1.2V | ||
| 1/2 D | 33mm | 37mm | 1.2V | ||
| 1/2 SC | 23mm | 26mm | 1.2V | ||
| 1/3 AA | 14.2mm | 17.5mm | 1.2V | ||
| 1/3 AAA | 10.5mm | 16mm | 1.2V | ||
| 2/3 A | 17mm | 28.5mm | 1.2V | ||
| 2/3 AA | 14.2mm | 28.7mm | 1.2V | ||
| 2/3 AAA | 10.5mm | 30mm | 1.2V | ||
| 4/3 A | 17mm | 67mm | 1.2V | ||
| 4/3 AF | 18mm | 67mm | 1.2V | ||
| 4/5 A | 17mm | 43mm | 1.2V | ||
| 4/5 AA | 14.2mm | 43mm | 1.2V | ||
| 4/5 SC | 23mm | 34mm | 1.2V | ||
| A | 17mm | 50mm | 1.2V | ||
| AA | 14.2mm | 50mm | 1.2V | ||
| AAA | 10.5mm | 40.5mm | 1.2V | ||
| C | 26mm | 46mm | 1.2V | ||
| D | 33mm | 58mm | 1.2V | ||
| SC | 23mm | 43mm | 1.2V |
Please note that sizes may vary slightly between manufacturers.

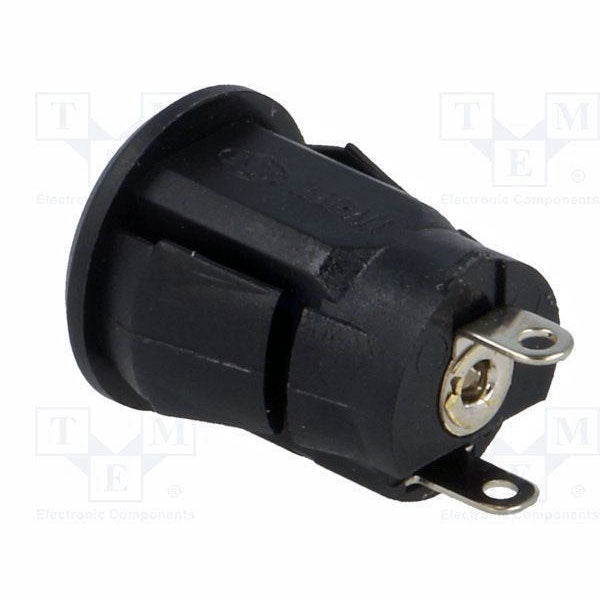

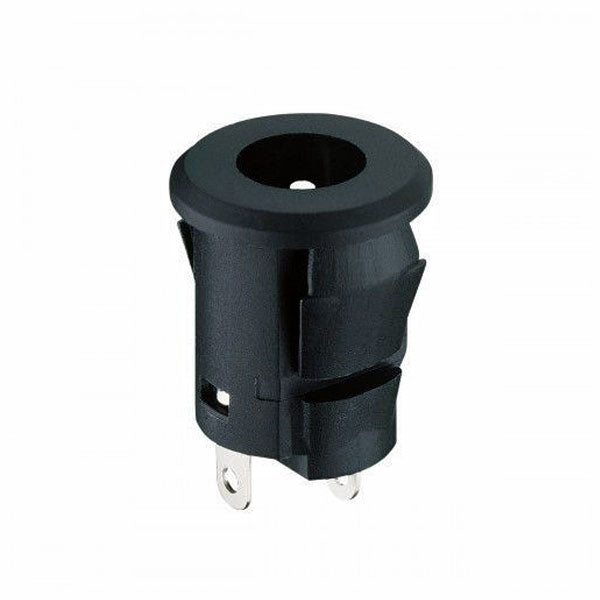

Description: Fully assembled DC Power Jack 2.35mm Cable Mount (Lumberg) 1610-05.
| Manufacturer |
Lumberg |
|---|---|
| Model |
A-1166 |
| Dia. Center Pin |
2.35mm |
| Dia. Opening |
5.8mm |
| Length |
18.2mm |
| Maximum Current Rating |
2 amps |
| Certificates |
CE/RoHS/MSDS |
| Maximum Voltage Rating |
24 Volts |
| Contract Plating |
Nickel |
| Contract Material |
Brass/Copper Tin |
